material structure

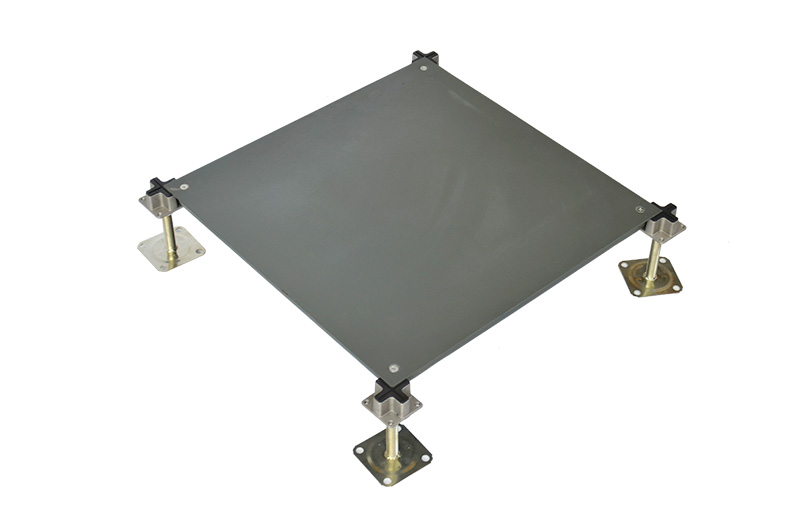

Four angle independent support structure, the floor bottom selects ST14 deep drawing board, and the panel selects cold rolled plate (steel producing area is Shanghai Baosteel), the floor is surrounded by four corners punching and hemming molding. After drawing by 500T hydraulic press, the thermosetting mould is made of blanking, automatic multi-point welding machine spot welding, through degreasing, phosphating, high temperature electrostatic epoxy spraying treatment, filled with foaming cement. The bearing is made of high quality galvanized steel or cast aluminum molding, and the screw bottom can be adjusted arbitrarily. After the floor paved, the whole flat, no color difference effect.

Product application

All steel 0A intelligent network floor is suitable for all kinds of intelligent buildings, 5A office buildings and places with overhead requirements and network cabling, which is more suitable for the ground transformation of the old office building integrated wiring.

Technological characteristics

The surface is made of SPCC hard cold rolled plate, and the bottom is made of ST14 drawing plate. After the drawing, spot welding, phosphating and spraying, the inner cavity is filled with foamed cement. The surface can be pasted or adsorbed all kinds of square carpet, PVC magnetic sheet, easy to clean.

Functional characteristics

All steel structure, strong bearing capacity, good fire resistance;
The dimension is high, the base height can be adjusted, and the installation is flexible;
Long service life.
